TTEX System
BARUS TTEX System is a taper threaded mechanical coupler comprised of a steel sleeve which is internally threaded with a single right-hand thread.
The ends of bars are taper threaded. TTEX family of tapered thread mechanical
couplers requires a BARUS taper threading machine.

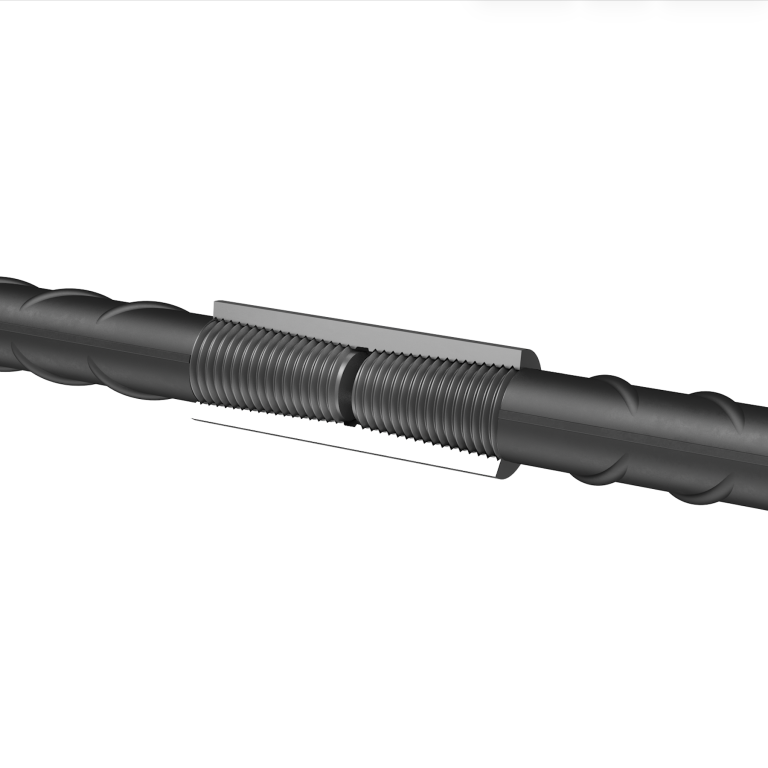

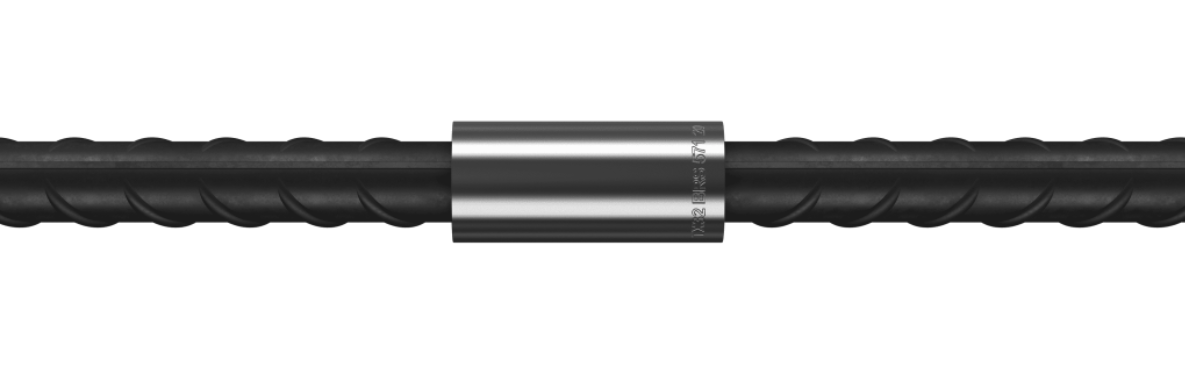

TTEX STANDARD COUPLER
The TTEX Standard Coupler is used in
applications where the continuation bar
can be rotated freely. The coupler is
internally threaded, with a single
right-hand thread. The ends of the bars
are taper-threaded for half the length of
the coupler.

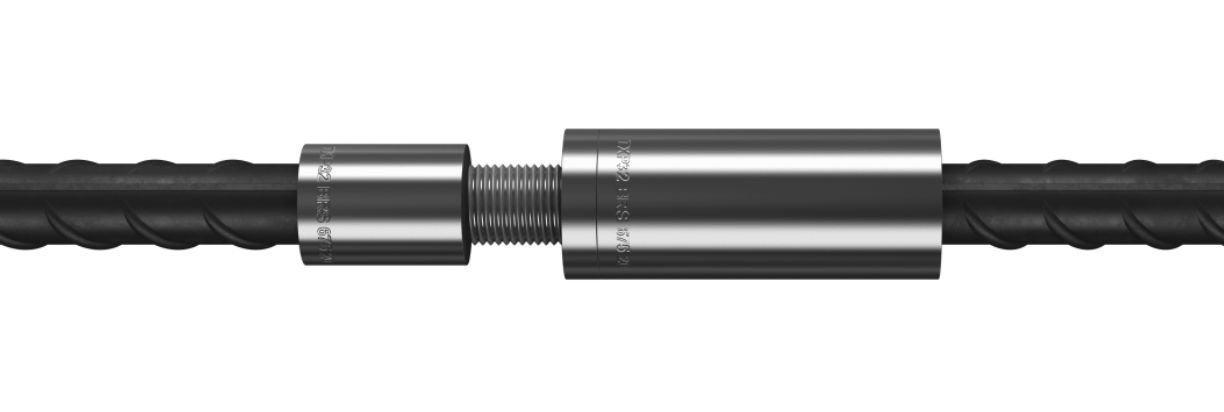

TTEX POSITION COUPLER
The TTEX Positional Coupler
comprises a female coupler, a male
coupler and a locknut. It is designed to
splice two bent or straight bars of the
same diameter, when neither bar can
be rotated like prefabricated cages and
precast elements.

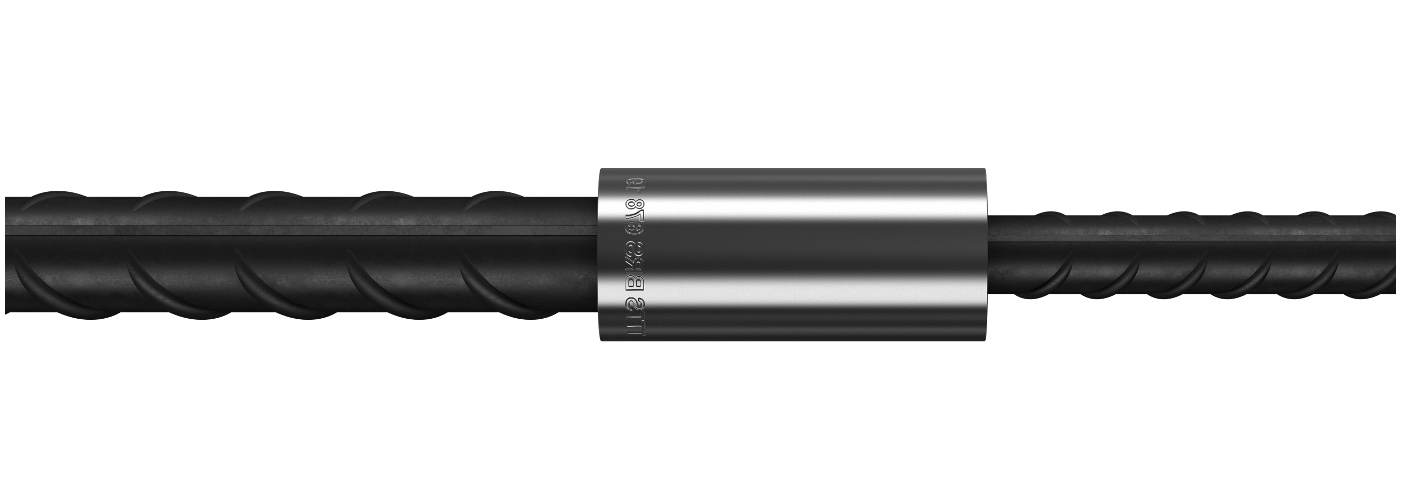

TRANSITION COUPLER
The TTEX Transition Coupler is used to
splice reinforcing bars of different
diameters. It is effective for cost- saving
designs that feature columns with rebar
that reduces in diameter as the column
extends vertically. The diameter of each
thread corresponds to the appropriate bar
size.

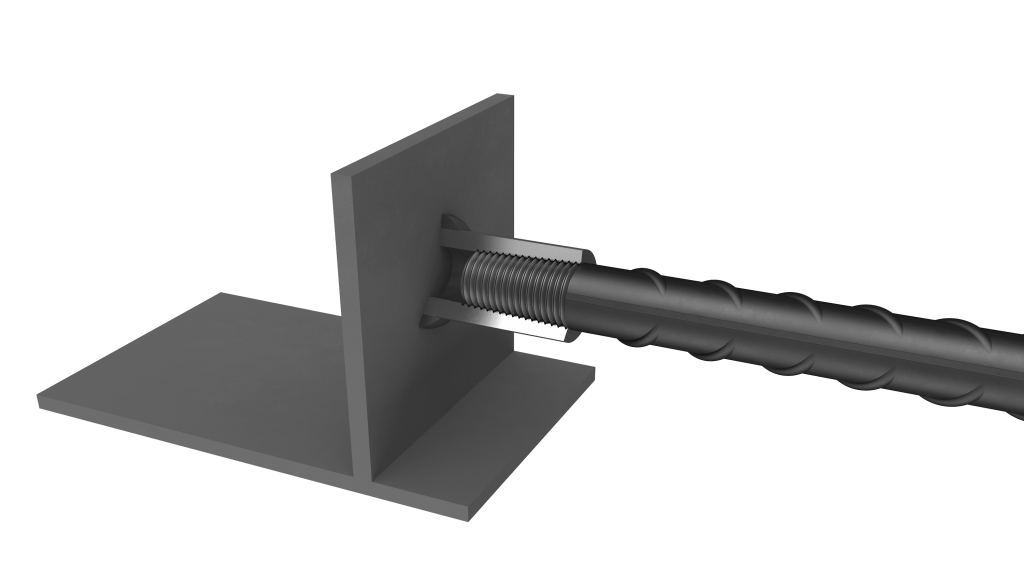

TTEX WELDABLE COUPLER
The TTEX Weldable Coupler is
similar to the TTEX Standard Coupler,
but only half of one end is internally
threaded. The other end is prepared for
welding. It is machined from a
weldable grade of steel with a welding
bevel on the non-threaded end.

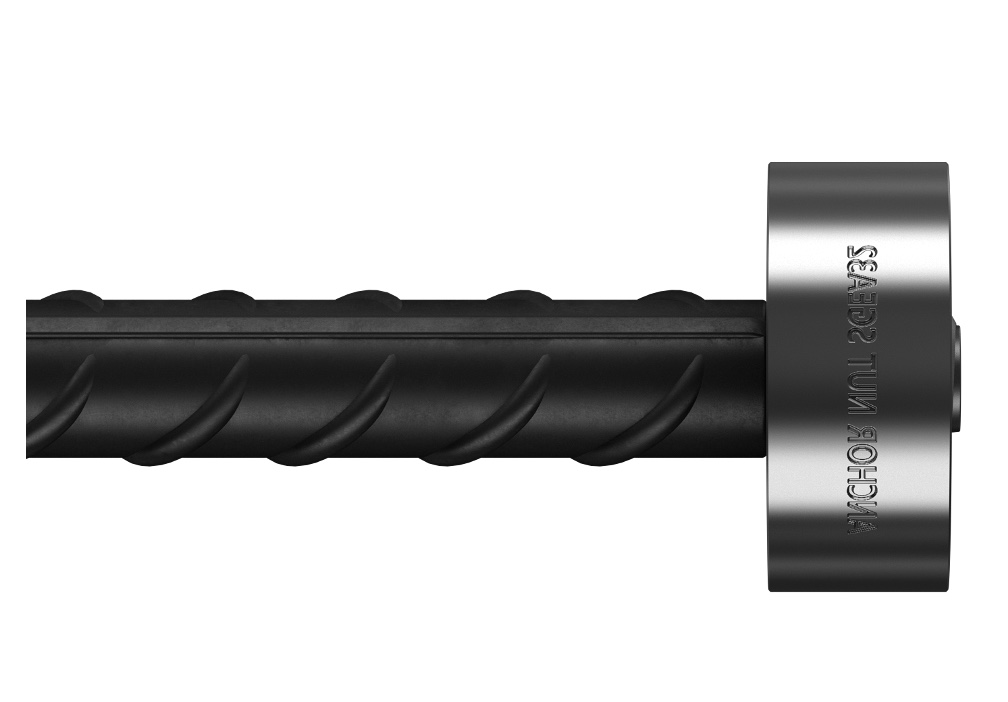

TTEX BAR-HEAD
TTEX Bar Head is a steel cylinder
that’s internally taper threaded to
accommodate a corresponding
threaded bar. It offers a more effective
method to anchor rebar in concrete
than the traditional hooked rebar.

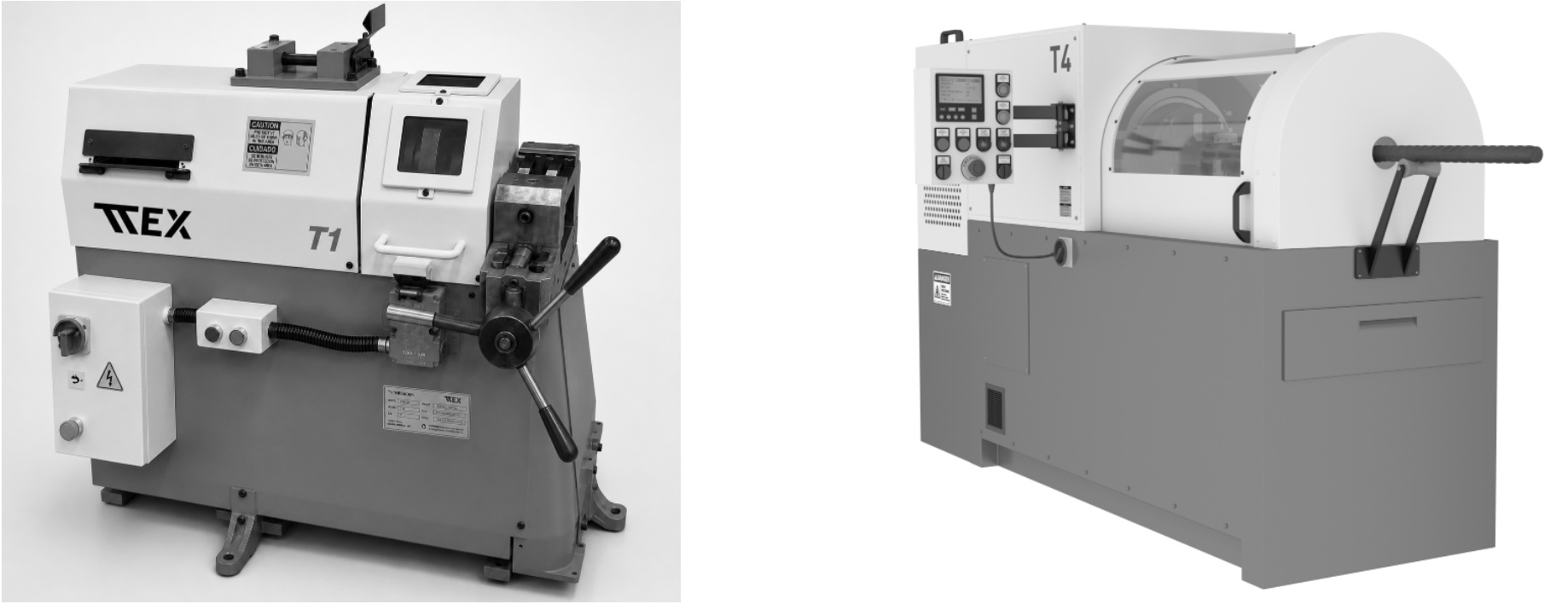

TTEX Taper Threading Machines
The TTEX System incorporates three state-of-the-art rebar taper threading machines, engineered to
deliver precise tapered threads for TTEX Mechanical Couplers and TTEX Headed Bars. Designed
for productivity, accuracy, and long service life, each model is optimized for different production
requirements while ensuring consistent thread quality and full compliance with international standards.
T1 Standard Threader
A compact, reliable taper threading machine designed for general-purpose production, delivering
accurate tapered threads for TTEX couplers and headed bars with simple operation and low
maintenance.
T4 Semi-Automated Threader
A high-productivity semi-automatic taper threading machine featuring automated clamping and
threading functions, increasing production efficiency while maintaining exceptional thread accuracy
and repeatability.
TS4 FullForce
The world’s first one-man-operated full-strength rebar threading machine that combines rebar
end swaging and precision taper threading in a single operation to produce 100% full-strength
threaded rebars.
